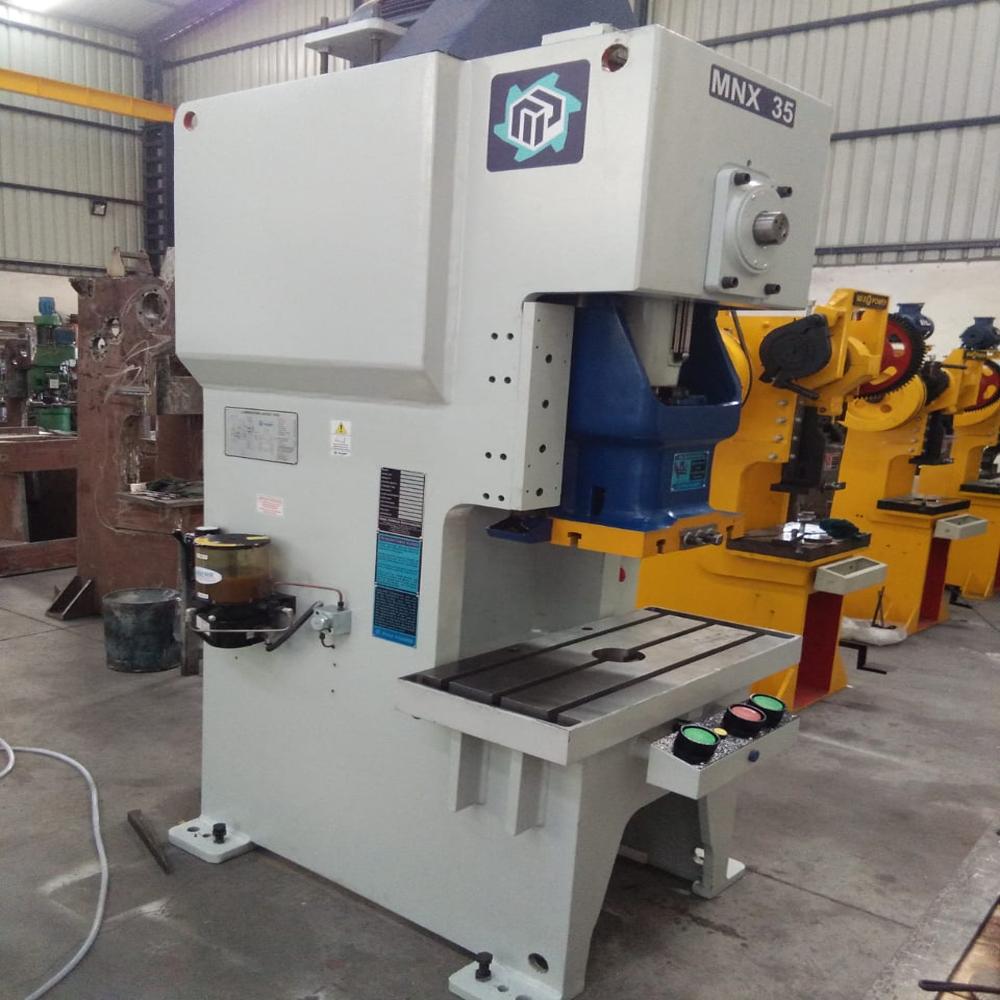

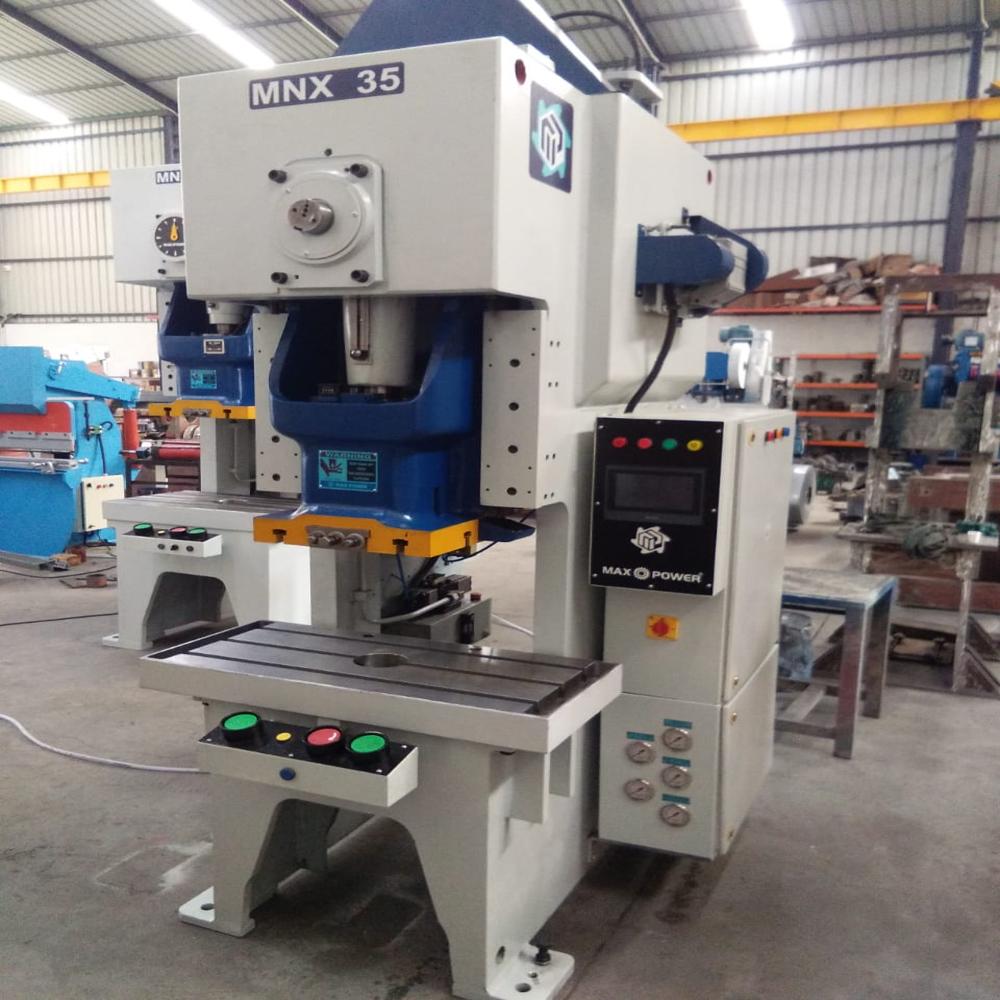

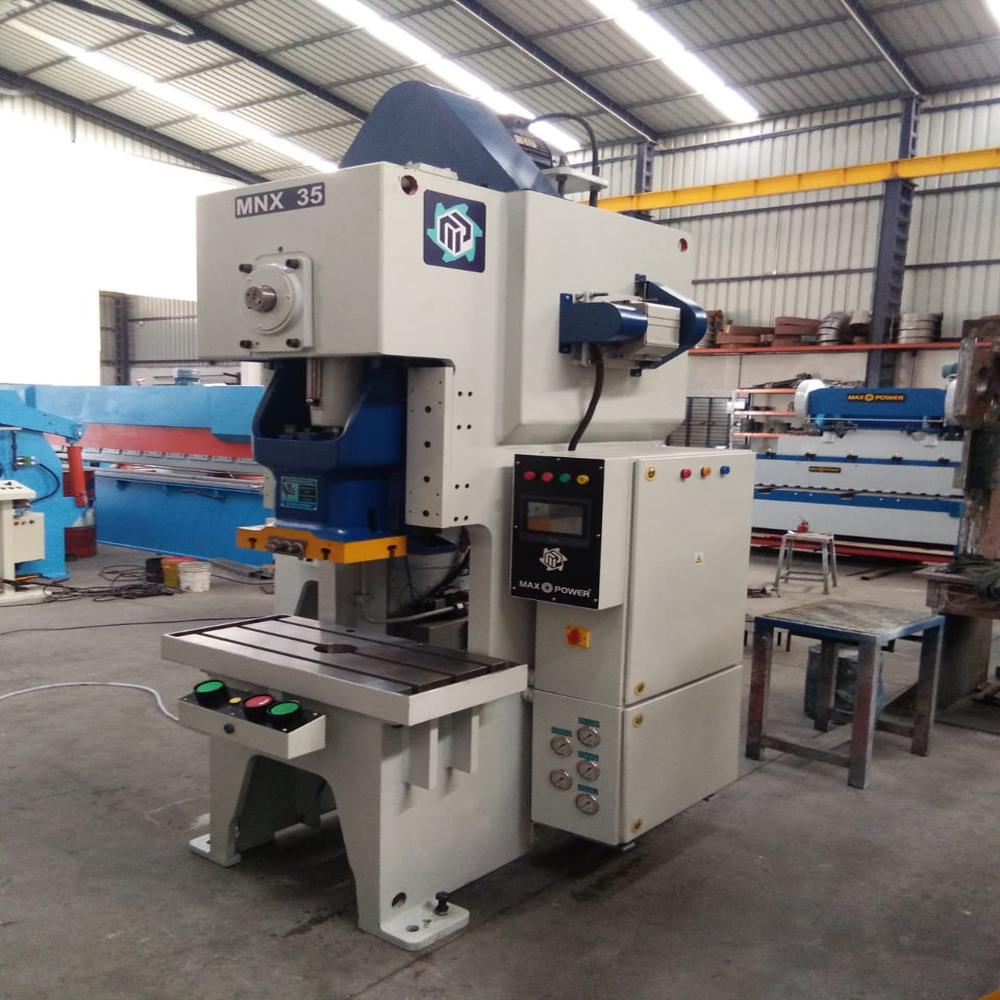

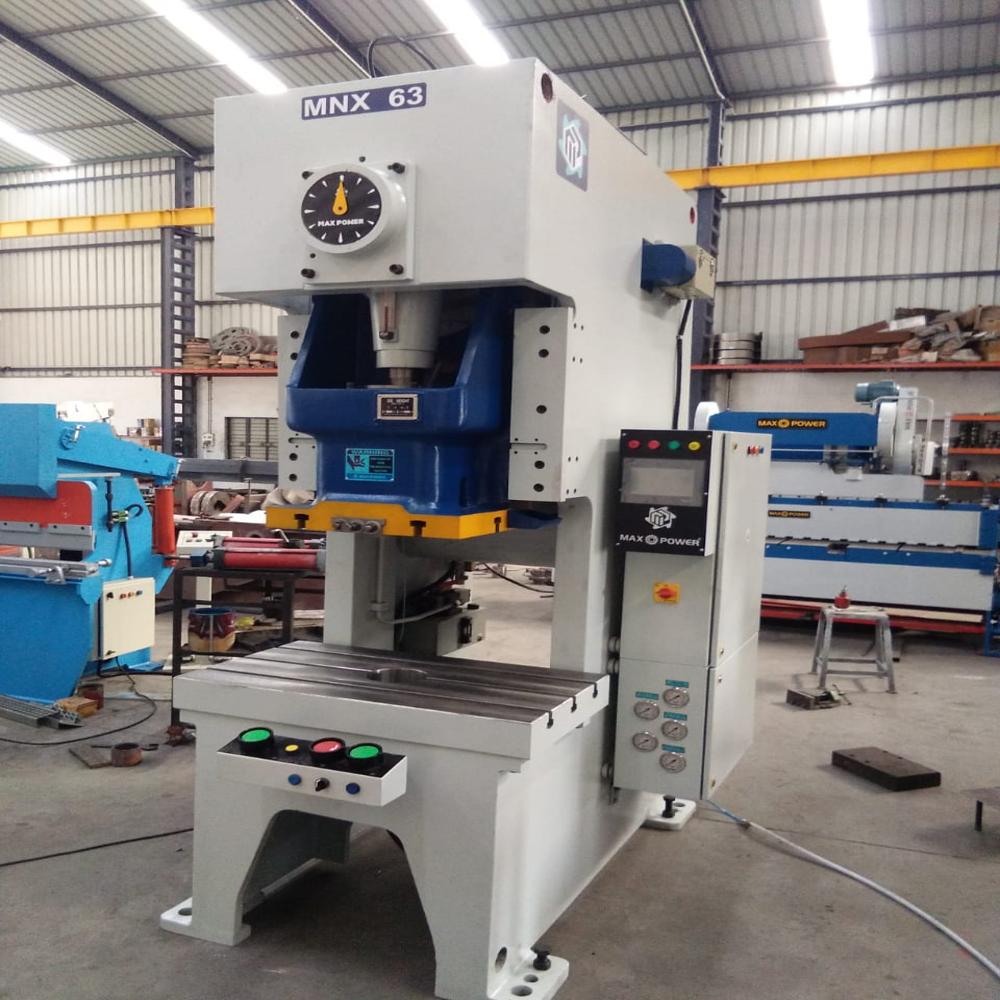

45 Ton Cross Shaft Power Press Machine

Name: 45 Ton Cross Shaft Power Press Machine
Brand: MAX POWER ENGINEERS
Price: 1080000.0 INR
Availability: InStock

Price 1080000.0 INR/ Ton

Get a Price/Quote

MOQ : 1 Ton

45 Ton Cross Shaft Power Press Machine Specification

Material
Metal

Power
45 Ton

Voltage
400-440 Volt (v)

Dimension (L*W*H)
Approx. 1800 x 1200 x 2350 mm

Product Type
Power Press Machine

Application
Industrial

Accessories
Electrical Control Panel, Die Cushion, Foot Switch, Safety Guards

Shut Height
290 mm

Slide Adjustment
70 mm

Safety Features
Double Hand Push Button, Emergency Stop, Overload Protector

Lubrication System
Centralized Automatic

Rated Capacity
45 Tons

Motor Power
5 HP

Bolster Size
800 x 450 mm

Stroke Per Minute
35-55 spm

Slide Stroke
120 mm

Frame Type
Cross Shaft, Rigid Steel Construction

Control System
PLC with Touch Panel

45 Ton Cross Shaft Power Press Machine Trade Information

Minimum Order Quantity
1 Ton

Payment Terms
Cash Advance (CA)

Supply Ability
20 Tons Per Month

Delivery Time
7 Days

Main Domestic Market
All India

45 Ton Cross Shaft Power Press Machine About

We are engrossed in supplying the top of the line 45 Ton Cross Shaft Power Press Machine that is popularly known among our customers owing to its premium quality and performance. This machine is capable of withstanding heavy loads, impacts, and tough conditions. It does not degrade in quality or become inferior due to regular use. The power press machine helps in pressing and forming the workpiece. 45 Ton Cross Shaft Power Press Machine does not degrade in quality or become inferior in the long run.

Advanced Control for Seamless Operations

Equipped with a modern PLC control system and an intuitive touch panel, this power press machine ensures accurate and user-friendly operations. Operators can monitor and adjust machine parameters in real time, enhancing productivity and reducing error rates in industrial settings.

Superior Safety and Durability

Designed for reliability, the cross shaft frame and rigid steel construction provide lasting performance. The machine incorporates key safety features-including a double hand push button, emergency stop, and overload protector-to safeguard personnel and equipment during intensive use.

Efficient Lubrication and Versatile Accessories

A centralized automatic lubrication system minimizes maintenance and prolongs machine life, ensuring all moving parts operate smoothly. Standard accessories like an electrical control panel, die cushion, foot switch, and safety guards further enhance its versatility and operator convenience.

FAQ's of 45 Ton Cross Shaft Power Press Machine:

Q: How does the cross shaft design benefit this power press machine?

A: The cross shaft frame enhances stability and reduces frame distortion, enabling consistent power transmission and precise stamping operations over prolonged industrial use.

Q: What is the process for adjusting the slide height and stroke on this machine?

A: Slide adjustment can be made up to 70 mm, easily set via the machine interface, while the stroke length is fixed at 120 mm for optimal operation flexibility across applications.

Q: When should the centralized automatic lubrication system be serviced?

A: While the centralized automatic lubrication system reduces manual upkeep, it is recommended to inspect and replenish lubrication levels during scheduled machine maintenance or whenever alerted by the system.

Q: Where can the 45 Ton Cross Shaft Power Press be installed?

A: The machine is suitable for industrial environments requiring heavy-duty metal pressing, and its dimensions (1800 x 1200 x 2350 mm) should be considered when preparing installation space in manufacturing units.

Q: What safety features protect users during operation?

A: Safety is prioritized with a double hand push button system, emergency stop mechanism, overload protection, and safety guards, all designed to minimize operational hazards and protect operators.

Q: How is this power press machine beneficial for manufacturers?

A: Manufacturers gain from fast production rates (35-55 strokes per minute), reliable power delivery, reduced downtime from automated lubrication, and advanced safety features, all contributing to improved efficiency and workplace safety.
